Case Study — Pet Portrait
Dog Portrait at 48×48: Smallest Practical Size
A single pet portrait at 48×48 — the "sweet spot" for balancing recognizable facial features with a beginner-friendly piece count and budget.
Result Gallery
Original source photo
BMBrick mosaic preview
Round tiles preview

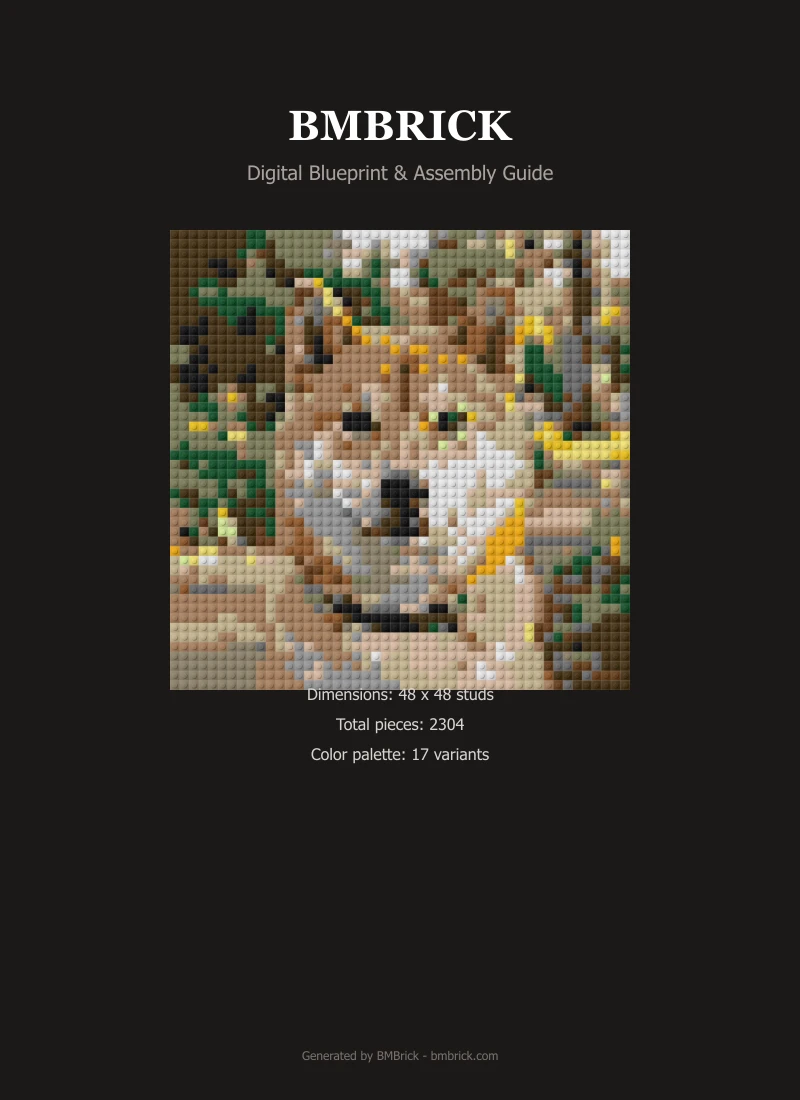

PDF instruction excerpt

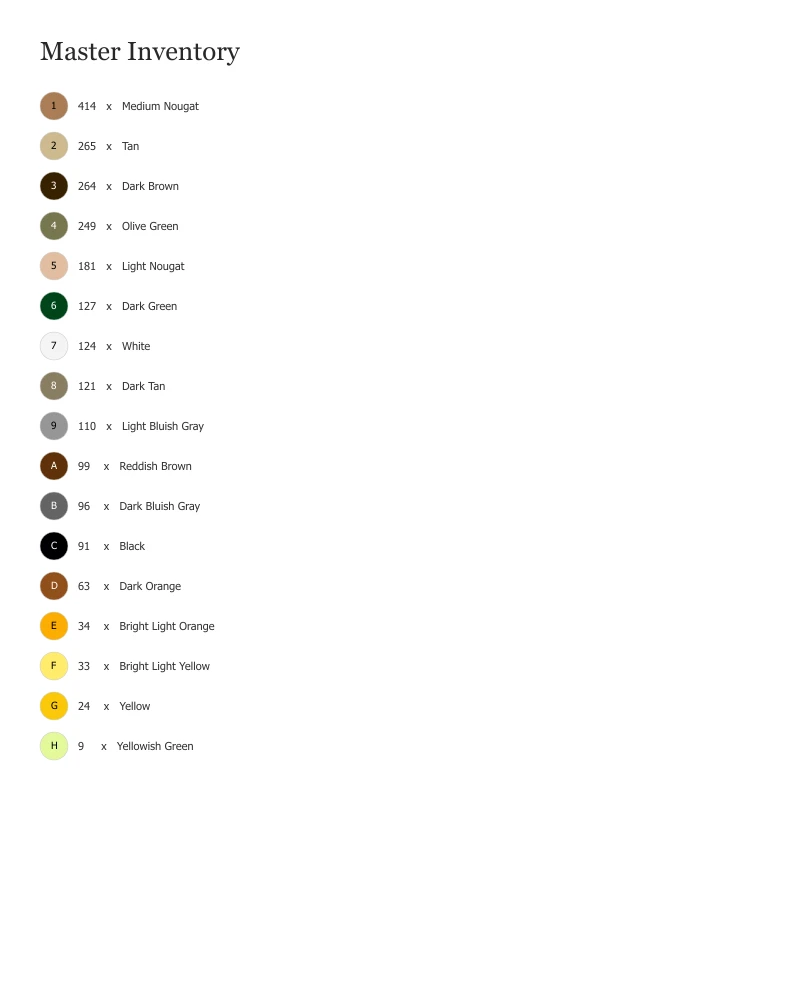

Parts list excerpt
For a single pet face (dog or cat), 48×48 is the most efficient size to choose. It uses 2,304 pieces, costs approximately ~$138 via LEGO Pick-a-Brick, and provides enough resolution to capture eyes, nose, and distinct fur markings. This size is ideal for beginners and gifts with a sub-$150 budget.
Quick Facts
| Photo type | Dog portrait — close-up face |
|---|---|
| Mosaic size | 48×48 studs (38.4 × 38.4 cm) |
| Brick type | Square 1×1 plates (LEGO #3024) |
| Total pieces | 2,304 |
| Estimated cost | ~$138 via LEGO PAB |
| Build time | 3–5 hours |
| Difficulty | Beginner |
| Output files | PDF instructions, BrickLink XML, PAB CSV |
Sourcing & Hardware Breakdown
A buildable LEGO mosaic isn't just the 1×1 plates — you also need baseplates to mount them on and (usually) connector pins to join the modules. Here's the full bill of materials for a 48×48 dog portrait, with prices across three sourcing routes.
Hardware required for a 48×48 build
| 1×1 plates (mosaic surface) | 2,304× LEGO #3024 across ~16 colors |
|---|---|
| Baseplates | 9× 16×16 stud baseplates (LEGO #91405 or Webrick equivalent) — arranged in a 3×3 grid |
| Connector pins | ~36× Technic pins (LEGO #2780) to lock the 9 modules together along their edges |
| Finished dimensions | 38.4 × 38.4 cm (~15″ × 15″) |
| Backing board (optional) | 40 × 40 cm MDF or foam board for wall mounting |
| Frame (optional) | 16″ × 16″ deep-edge floating frame, ~5–6 cm depth to clear the studs |
Cost breakdown by sourcing route
| Component | LEGO Pick-a-Brick | BrickLink (2–3 sellers) | Webrick (China) |
|---|---|---|---|
| 2,304 × 1×1 plates | $138 ($0.06/pc) | ~$92 ($0.04/pc avg) | ~¥320 (~$45) |
| 9 × 16×16 baseplates | ~$45 ($5 each) | ~$30 ($3.30 each) | ~¥80 (~$11) |
| ~36 connector pins | ~$7 ($0.20 each) | ~$3 ($0.08 each) | ~¥15 (~$2) |
| Shipping | $10 (1 order) | $25–30 (3 orders) | varies by region |
| Total (excl. frame) | ~$200 | ~$155 | ~¥415 (~$58) |
How to choose: LEGO PAB is the most reliable for color stability and single-shipment convenience — best for first-time builders and gifts with a deadline. BrickLink rewards builders who can split orders across sellers and wait 1–2 weeks. Webrick is the cheapest route by a wide margin but ships from China and uses a different (LEGO-compatible) palette with slightly different shades. Prices are 2026-05 estimates and depend on stock and seller.
Original Photo Analysis
Subject Clarity
Sharp focus on the eyes and nose. For pet portraits, the eyes are the primary recognition point — if they are sharp in the photo, the mosaic will likely succeed.
Background Complexity
Moderate background detail (park grass). Effectively removed with Magic Cut to ensure the limited palette was dedicated entirely to the dog's fur tones.
Lighting Quality
Bright, even natural light with a clear highlight in the eyes. High-quality lighting prevents the fur from merging into a single dark blob during quantization.
Contrast and Tonal Range
Strong contrast between the dog's white patches and darker fur. This creates distinct visual landmarks that translate well to 1×1 brick resolution.
Crop Suitability
Tight face crop, ears included but slightly clipped. This maximized the number of bricks available for the eyes and nose area — the highest-impact zones.
Setup Choices
Size Choice
48×48 chosen as the entry-level standard. It provides recognizable features without the 5+ hour time commitment of larger sizes.
Brick Type
Square plates for maximum color coverage. Square plates eliminate gaps between studs, which helps fur gradients look more continuous and realistic from a distance.
Background Treatment
Background fully removed using Magic Cut. This saved approximately 240 pieces and allowed for a richer 16-color fur palette.
Color Mode
Optimized for the LEGO PAB palette. 16 active colors — enough to capture the warm browns and greys of the dog's coat without becoming noisy.
Cost and Parts Breakdown
| Metric | Value | Notes |
|---|---|---|
| Total pieces | 2,304 | All 1x1 plates or tiles |
| Cost estimate | ~$138 via LEGO PAB | At .06/piece via LEGO PAB |
| Build time | 3–5 hours | Single builder estimate |
| Sourcing | BrickLink, PAB, Webrick | XML/CSV export available |
Lessons Learned
What Worked
- Tight face cropping made the 48×48 resolution feel much higher than it is
- Background removal prevented 'color bleed' where grass tones would have mixed with fur tones
- Clear eye highlights translated perfectly to single 1×1 white plates, making the mosaic look 'alive'
What Did Not Work
- Fur texture in the dark shadow areas was lost — expected at this resolution but worth considering larger sizes for very dark pets
- Fine whiskers were completely unresolvable — the algorithm simplified them into general face tones
Best For
- Single pet face portraits (dogs, cats, rabbits)
- Beginner builders looking for a single-afternoon project
- Gifts with a ~$150 budget including shipping and baseplates
48×48 is the most popular and practical choice for pet portraits — provided you crop tightly on the face and use a well-lit source photo, the result is a recognizable and emotionally impactful piece of art.
